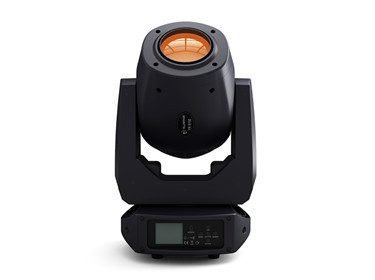

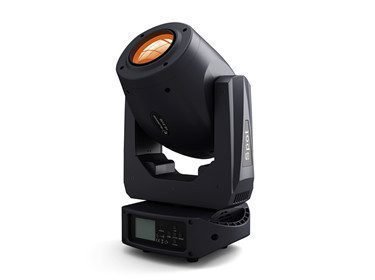

LED MOVING HEAD VK-S150LED

LED MOVING HEAD VK-S150LED

Voltage 100V ~240V,50-60HZ

Light SourceLED 150W White LED @5000lm/

10000lux@5m

LED lifespan 20000 hours

Control Mode

DMX512 √ CH17/CH21

Master/slave √ Auto√

RDM protocol√

Update

USB firmware update port

Optical System

Strobe 1~30t/s

CCT 8000K

Color  wheel

7color+ white+semi-color effect+bi- direction effect

Effect Gobo Wheel 1pc animation wheel with 3 effects

Rotation Gobo Wheel

6 rotation gobo+white +shake+bi-direction

Prism

Special illusion 6 facets and 4 facet prism, clock wise+counterclockwise rotation (6 facets linear prism optional)

Angle 8°

Lux 10000lux@5m

PAN/TILT :

PAN:540°; Tilt: 270°,3 phase motor

Cooling system

2 cooling fans(base and head fan)

Physical

Color LCD display with the 5-button function menu
DMX In/Out: 3/5-pin DMX
Power In/Out: Locking powerCON (Daisy chain 3 units @ 120V; 6 units @ 240V)

Machine Size 298*231*473mm

Weight(kg) 11.1

Environment& safety

Level of Protection IP20

Stock Clean and dry place

Running temp. -10°C~40°C
